A Low-Cost Single-Pixel Thermographic Camera

Bauer, Florian; Loviscach, Jörn

A Low-Cost Single-Pixel Thermographic Camera

Files

067-068.pdf (682.23 KB)



Date

2011

Authors

Bauer, Florian
Loviscach, Jörn

Publisher

The Eurographics Association

Abstract

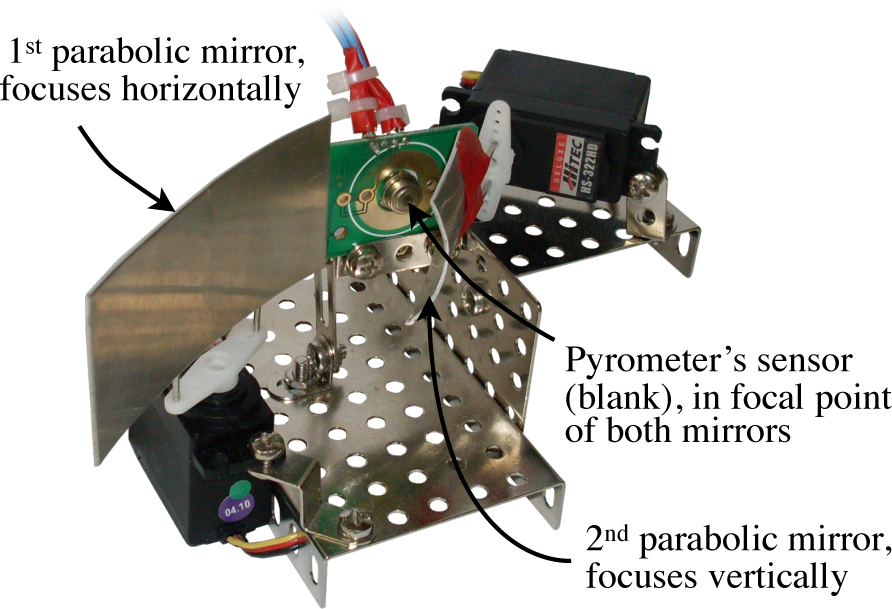

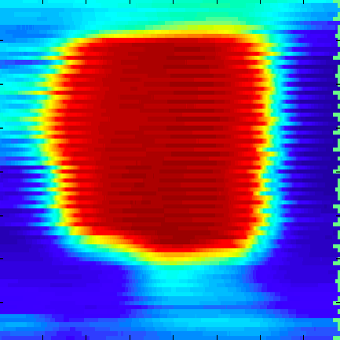

A working prototype of single-pixel thermographic camera which can be built for 100 Euros is presented. It is based on a pyrometer's sensor (thermopile with optics) and two mirrors mounted on servos to scan horizontally and vertically. Thanks to simple yet powerful filtering, the measurement proceeds at a speed of 5 ms per pixel even though the sensor has an actual response time of t90 ~60 ms. The scan for the resulting sharp image of 80x80 pixels takes one minute. We discuss further improvements to create a product suitable for facade thermography.

        @inproceedings{:10.2312/LocalChapterEvents/TPCG/TPCG11/067-068
,
booktitle = {Theory and Practice of Computer Graphics
},
editor = {Ian Grimstead and Hamish Carr
},
title = {{A Low-Cost Single-Pixel Thermographic Camera
}},
author = {Bauer, Florian and
Loviscach, Jörn
},
year = {2011
},
publisher = {The Eurographics Association
},
ISBN = {978-3-905673-83-8
},
DOI = {/10.2312/LocalChapterEvents/TPCG/TPCG11/067-068
}
}
